Electronics projects that Cat's Eye Technologies has designed (and sometimes built, too).
Mildred
- defining-distribution: Electronics Projects distribution
- constructed: true
- legacy distfile @ https://catseye.tc/distfiles/mildred-2003.0110.zip, https://catseye.tc/distfiles/mildred-1.0-2011.0414.zip
Mildred is a 4MHz Z80-based homebrew computer with 40K of memory (8K EEPROM, 32K SRAM.)
LED-386
- defining-distribution: Electronics Projects distribution
- constructed: true
- legacy distfile @ https://catseye.tc/distfiles/led386-2004.0227.zip

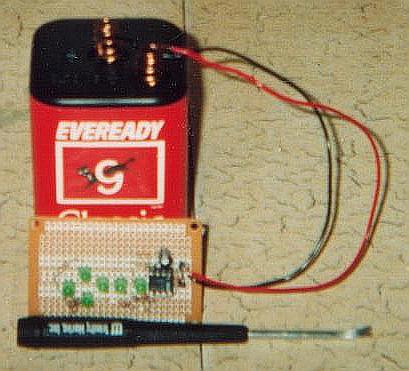

A 386-based LED blinker.
The LM386 audio amplifier IC, that is...
The 'Kitsilano' Oscillator
- defining-distribution: Electronics Projects distribution
- constructed: false
- legacy distfile @ https://catseye.tc/distfiles/kitsilano-2008.0905.zip, https://catseye.tc/distfiles/kitsilano-1.0-2011.0524.zip
An oscillator circuit that contains two NPN transistors and a single capacitor.
